TrimLock™ Roof Hip & Ridge Systems
Patented, Industry-Changing Performance for Tile Roofing
TrimLock™ is one of East Coast Metals’ most significant innovations and a defining product within the tile roofing industry. First introduced in 1999, ECM engineered the industry’s original metal hip and ridge anchor, establishing a new standard for durability and long-term performance.
Driven by the need for stronger connections and fewer roof penetrations, ECM later developed and patented the first metal hip and ridge anchor featuring a foam interlocking system. This advancement improved installation efficiency and enhanced wind uplift resistance, making TrimLock™ one of the most trusted solutions in hurricane-prone regions.
Today, TrimLock™ and TrimLock Plus™ continue to be relied on by leading tile manufacturers, roofing professionals, and distributors throughout the United States and Caribbean.

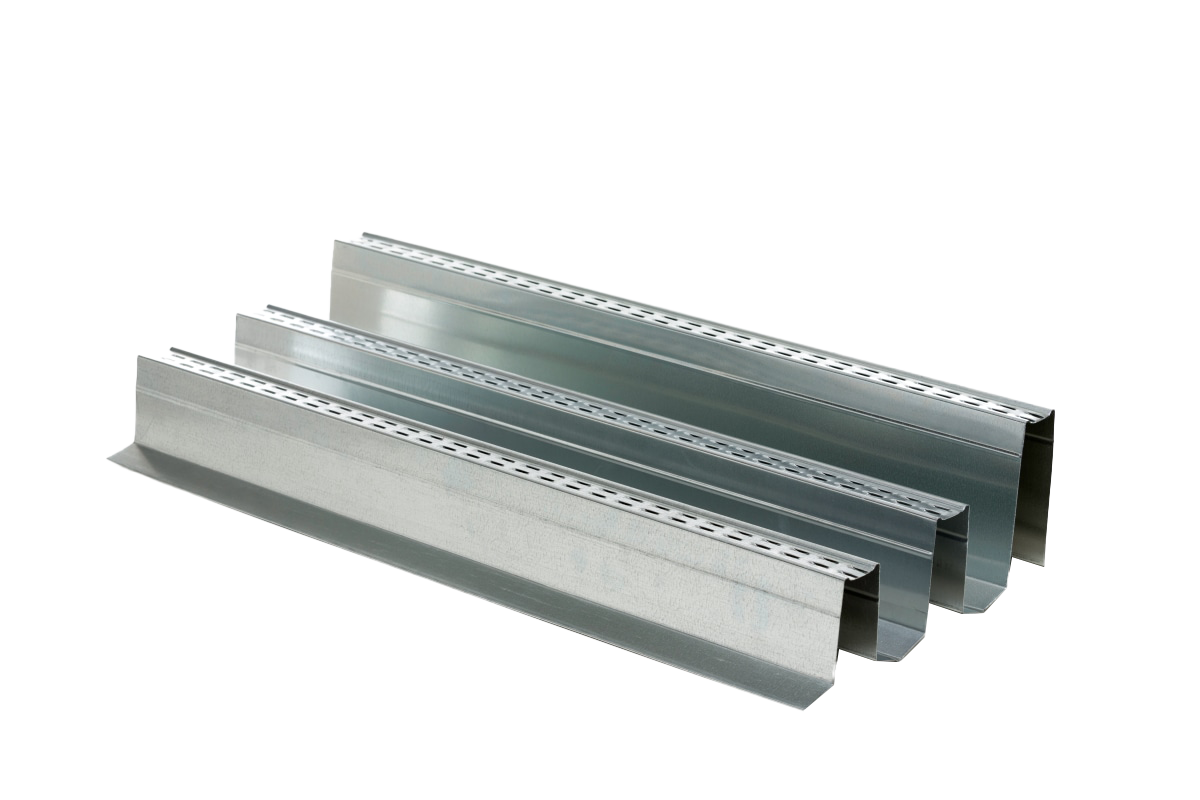

TrimLock™
TrimLock™ introduced a new standard in metal hip and ridge anchoring, offering a durable, reliable solution that has supported the industry for decades.
Specifications
part number
600
600
US Patents
7739840D583.965S
Available Sizes
3”, 3.5”, 4”, 5”, 6”, 7”
3”, 3.5”, 4”, 5”, 6”, 7”
Length
Color / Material Options
Mill Finish Galvanized
Mill Finish Galvalume
Mill Finish Aluminum
Stainless Steel
part number
600
US Patents
7739840D583.965S
Available Sizes
3”, 3.5”, 4”, 5”, 6”, 7”
Length
Color / Material Options
Mill Finish Galvanized
Mill Finish Galvalume
Mill Finish Aluminum
Stainless Steel

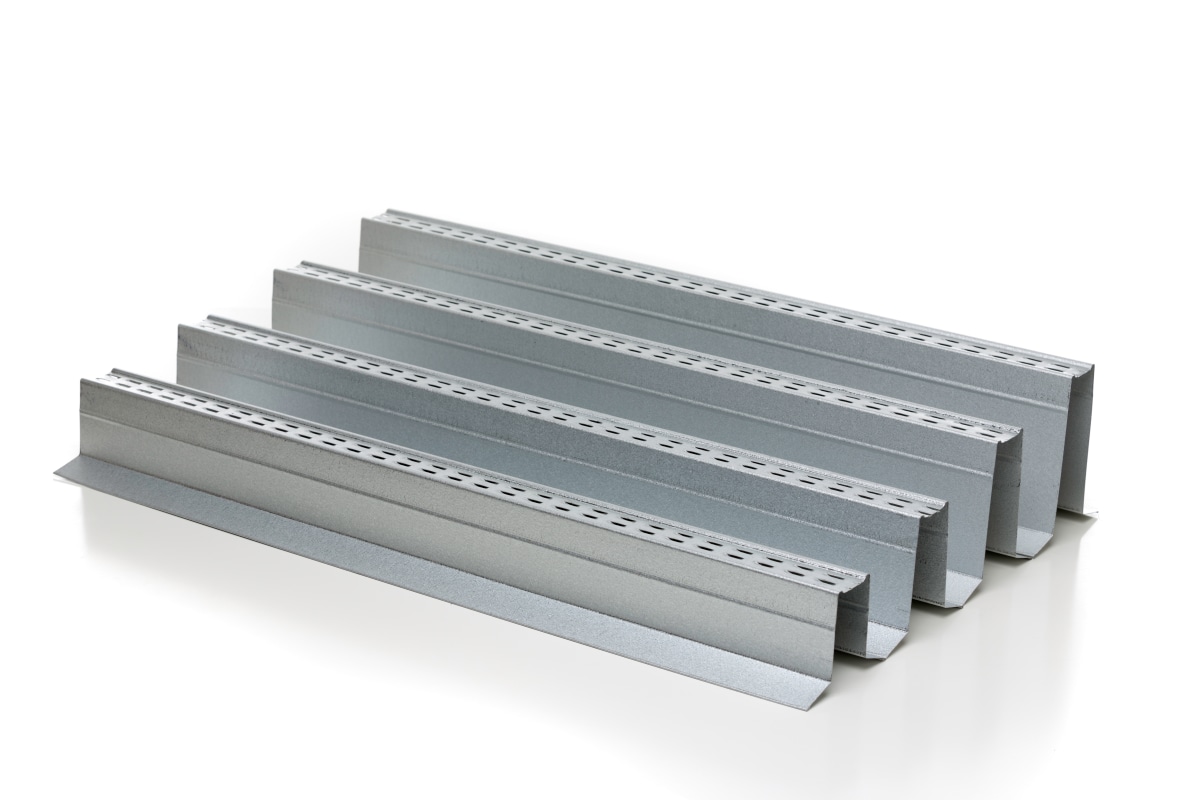

TrimLock Plus™
TrimLock Plus™ builds on the original design with enhanced stability, faster installation, and improved long-term performance.
Specifications
part number
601
601
US Patents
7739840D583.965S
Available Sizes
3”, 3.5”, 4”, 5”, 6”, 7”
3”, 3.5”, 4”, 5”, 6”, 7”
Length
Color / Material Options
Mill Finish Galvanized
Mill Finish Galvalume
Mill Finish Aluminum
Stainless Steel
part number
601
US Patents
7739840D583.965S
Available Sizes
3”, 3.5”, 4”, 5”, 6”, 7”
Length
Color / Material Options
Mill Finish Galvanized
Mill Finish Galvalume
Mill Finish Aluminum
Stainless Steel
Downloadable Resources
Access helpful documents to support planning, installation, and product selection for TrimLock™ and TrimLock Plus™.
Why TrimLock™?
Patented Interlocking System
ECM’s foam-interlocking design reduces the need for multiple fasteners, minimizing roof penetrations while ensuring a secure, long-lasting bond.
Proven in High-Wind Regions
Engineered and tested for performance in demanding climates, TrimLock™ helps support compliance with modern building codes, including Florida’s rigorous standards.
Trusted by Top Roofing Brands
For more than a decade,TrimLock™ has been used by some of the most respected manufacturers and installers in the industry.
American-Made Reliability
Manufactured in the USA with strict quality controls, TrimLock™ delivers consistency and dependable performance on every project.
TrimLock™ Applications
TrimLock™ products are used for:
- Hip & ridge tile anchoring
- High-wind zone reinforcement
- Hurricane-prone region installations
- New tile roofing systems
- Replacement & repair projects
TrimLock™ FAQs
What is TrimLock™ used for?
TrimLock™ is a patented metal hip and ridge anchoring system designed for tile roofing applications. It provides secure attachment, improved wind uplift resistance, and long-term durability.
How does the TrimLock™ interlocking system work?
The foam interlocking design reduces the need for multiple fasteners and creates a tight bond between components, limiting roof penetrations and improving installation efficiency.
Is TrimLock™ approved for high-wind or hurricane-prone regions?
Yes. TrimLock™ was engineered and tested with the performance demands of high-wind zones in mind and supports compliance with Florida Building Code requirements.
What materials are available?
TrimLock™ and TrimLock Plus™ are offered in mill finish galvanized, mill finish galvalume, mill finish aluminum, and stainless steel options.
What sizes does TrimLock™ come in?
Both systems are available in 3”, 3.5”, 4”, 5”, 6”, and 7” sizes to accommodate a wide range of tile profiles.
What is the difference between TrimLock™ and TrimLock Plus™?
TrimLock™ is the original patented system. TrimLock Plus™ offers enhanced stability, faster installation, and an upgraded interlocking bond for improved long-term performance.
Is TrimLock™ manufactured in the USA?
Yes. All TrimLock™ components are made in the United States in ECM’s in-house manufacturing facility.
Does TrimLock™ work with all tile manufacturers?
TrimLock™ is widely compatible with leading tile roofing manufacturers and is trusted across the United States and Caribbean.
